Photo Frame Cutting Machine
The Photo Frame Cutting Machine is a precision-engineered solution designed to deliver accurate and clean miter cuts for photo frames, wooden profiles, aluminum channels, and decorative moldings. Built with robust construction and advanced cutting mechanisms, this machine ensures smooth operation, minimal wastage, and perfect angles for seamless frame assembly.
Equipped with a high-quality blade and adjustable angle settings, the machine allows operators to achieve consistent 45° or custom miter cuts with ease. Its ergonomic design and user-friendly controls make it suitable for both small workshops and large-scale frame manufacturing units.
The Photo Frame Cutting Machine is designed for durability and efficiency, reducing manual effort while increasing productivity. Its stable structure minimizes vibration during cutting, ensuring precise results every time.

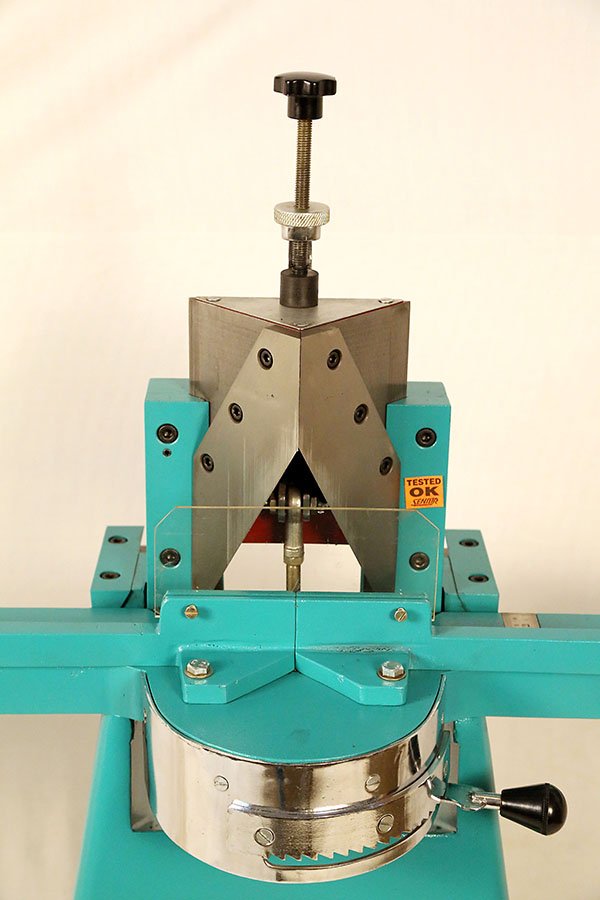

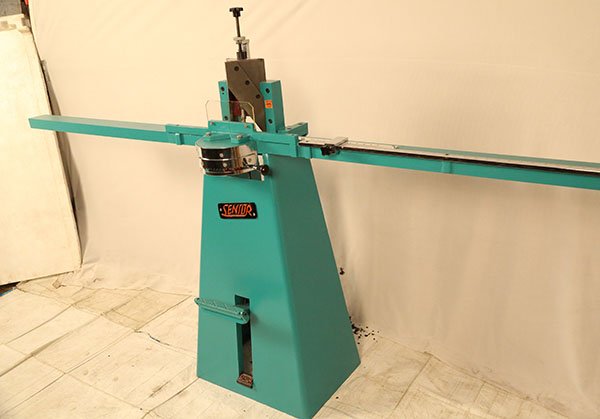

Model:- SM-65F Senior Mitering-65 Fix Photo Frame Cutting Machine Mitering Machine-Small

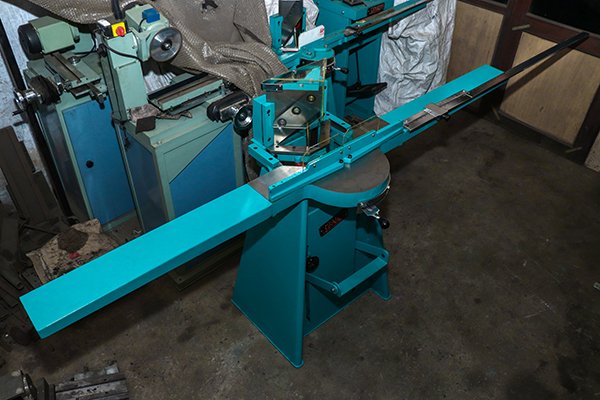

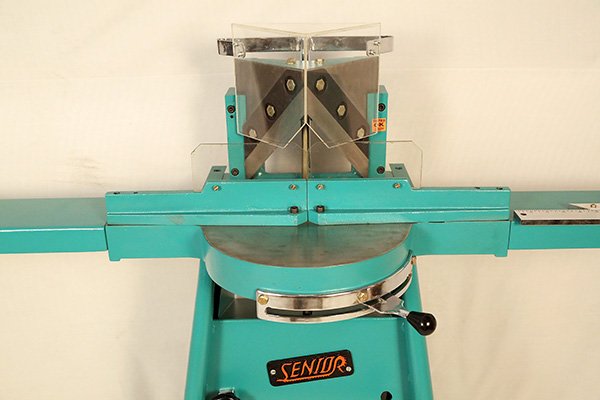

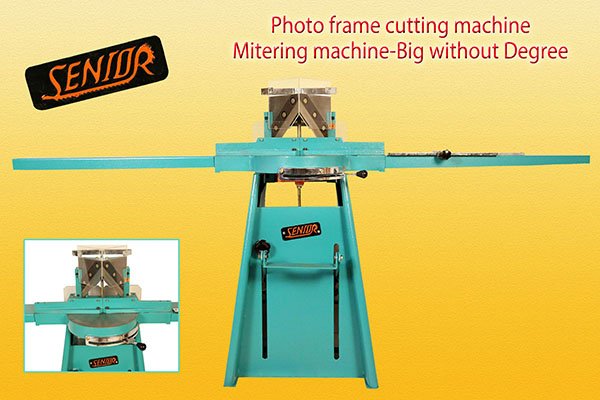

Model:-SM-110F Senior Mitering-110 Fix Photo Frame Cutting Mitering Machine-Big without Degree

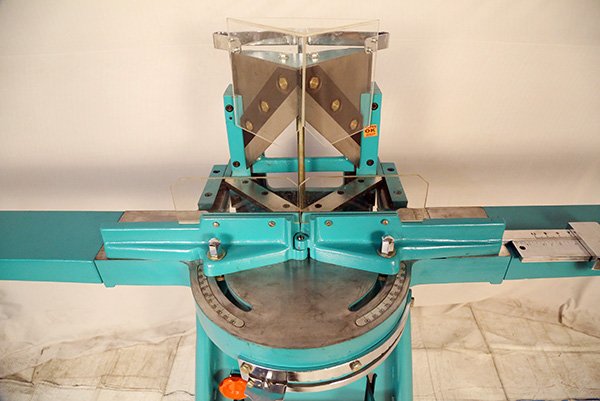

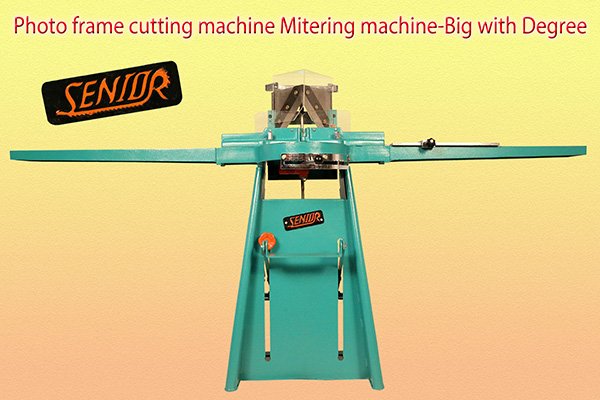

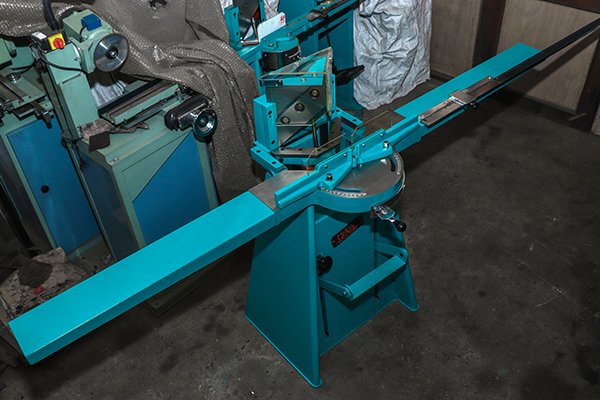

SM-110D Senior Mitering-110 Degree Photo frame cutting machine Mitering machine-Big with Degree
Technical Specifications
Photo Frame Cutting Machine – Model SM-65F
| Specification | Details |
|---|---|
| Maximum Cutting Width | 65 mm / 2.5" |
| Maximum Length Measurement | 42" Glass Size |
| Double Mitre | 45° |
| Operation | Foot Operate |
| Working Table Height | 880 mm |
| Dimensions (W × D × H) | 2080 × 450 × 1030 mm |
| Weight | 70 kg (Approx.) |
Standard Accessories
- Measuring System
- Extension Table
- High Quality Resharpening Knives
- Transparent Knife Guards
- Spanner Set
Specialities of SM-65F
- Easily foot operate working
- Long life sharp cutting blade
- Glass size cutting scale
- High mass production capability
- Super fine accuracy must be achieved
- Vertical slider adjustable stopper
- Fully ball bearing machine
- No noise, no pollution
- Less skilled person can easily operate
- Powder-coated body
- Blades can be resharpened many times
Technical Specifications
Photo Frame Cutting Machine – Model SM-110D / 110F
| Specification | Details |
|---|---|
| Cutting Width (Max) | 4.25" / 110 mm |
| Cutting Height (Max) | 6.25" / 160 mm |
| Double Mitre | 45° |
| Single Mitre | 90° |
| Measuring Scale | Up to 60" Glass Size |
| Height of Working Bench | 880 mm |
| Adjustable Fences | 45° to 90° |
| Operation | Foot Operate |
| Dimensions (W × D × H) | 2170 × 550 × 1110 mm |
| Net Weight | 110 kg (Approx.) |
| Standard Accessories | Measuring System, Extension Table, Glass Size Cutting Scale, Transparent Knife Guards, Spanner Set, Vertical Slider Adjustable Stopper |
Specialities of SM-110D \ 110f
- Easily foot operate working
- Long life sharp cutting blade
- High-quality resharpening knives
- High mass production capability
- Super fine accuracy must be achieved
- Fully ball bearing machine
- No noise, no pollution
- Less skilled person can easily operate
- Powder-coated body
- Blades can be resharpened many times
Manual Photo Frame Cutting Machine (SM-65F)
Capacity
100 Frames / Day
Model
SM-65F
Material
MS, Graded CI, Aluminium
Weight
70 kg (Approx.)
Dimensions
2080 × 450 × 1030 mm
Surface Finish
Powder Coated / Color Coated
Max. Cutting Width
65 mm / 2.5 inch
Max. Length Measurement
42 inch Glass Size (1065 mm)
Double Mitre
45°
Operation Type
Foot Operated
Working Table Height
880 mm
Country of Origin
Made in India
Electric Photo Frame Cutting Machine (SM-45E)
Capacity
200 Frames / Day
Model
SM-45E
Material
Mild Steel
Speed
1440 RPM
Voltage
220 / 440 V
Current
6.5 A
Motor Power
1 HP, 1440 RPM
Power Source
Electric
Blade Size
12 inch Circular
Max. Cutting Thickness
80 – 85 mm
Max. Cutting Width
120 – 130 mm
Max. Table Travel
200 mm
First Scale
44 inch
Second Scale
42 inch
Table Size
28 × 30 inch
Height of Working Bench
850 mm
Dimensions (W × D × H)
1525 × 1015 (with table) × 970 mm
Weight
150 kg (Approx.)
Surface Finish
Powder Coated
Country of Origin
Made in India
Branding
Branding highlights our Photo Frame Cutting Mitering Machine as a trusted choice for precision and durability in the framing industry
Design
Designed with accuracy and user convenience in mind, this machine ensures flawless miter cuts with minimal effort.
development
Developed using advanced engineering and high-quality materials, the machine guarantees long-term performance and reliability

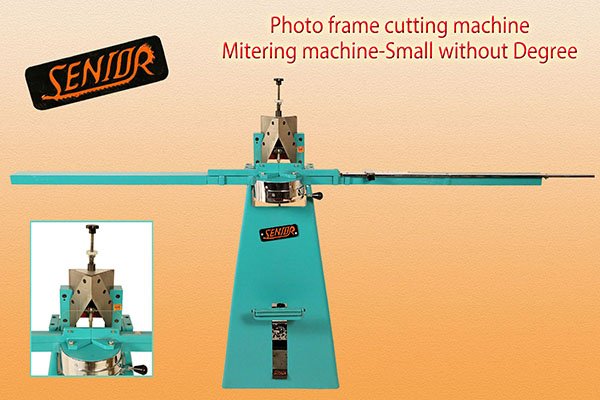

Photo Frame Cutting Machine-Small Without Degree
