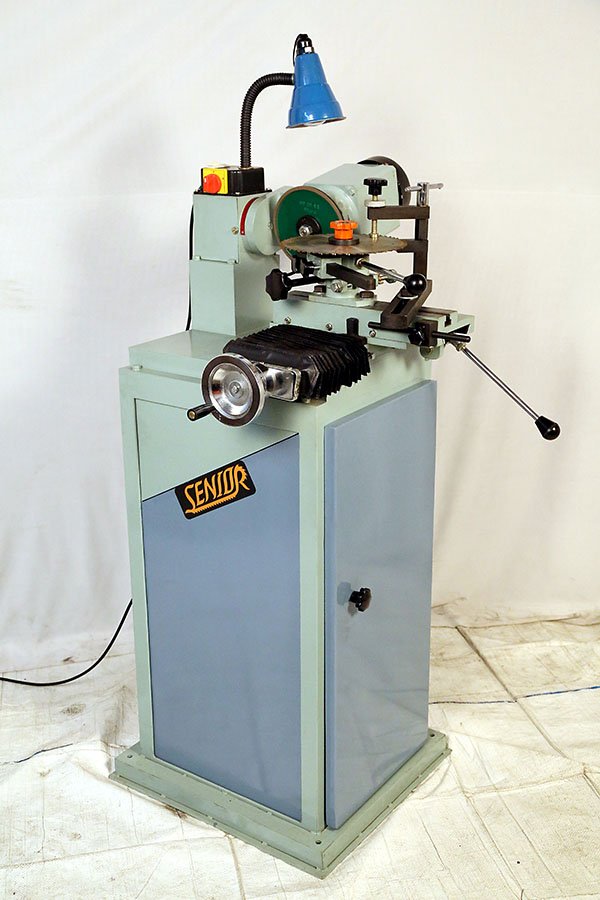

TCT Circular Saw Grinder Machine

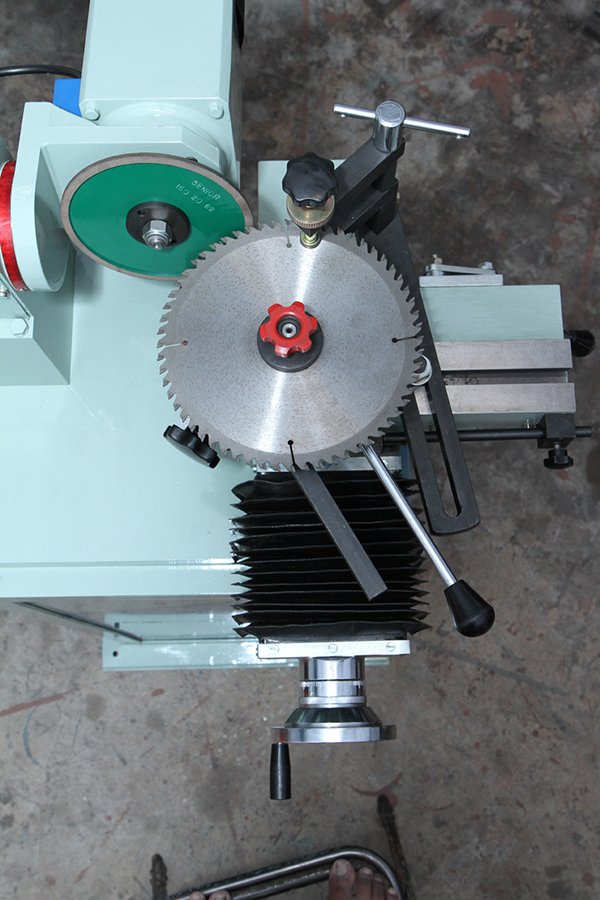

The TCT Circular Saw Blade Grinding Machine is engineered to deliver high precision in sharpening Tungsten Carbide Tipped (TCT) circular saw blades. Designed with advanced features and a sturdy build, this machine ensures blades remain sharp, durable, and efficient, allowing for smooth and consistent cutting operations.
With adjustable grinding angles and user-friendly controls, it provides accuracy and flexibility for different blade sizes and cutting requirements. Its heavy-duty construction guarantees stability during operation, while its low-maintenance design makes it a reliable choice for long-term industrial use. This machine is widely used in woodworking, aluminum cutting, furniture manufacturing, and various industrial workshops where sharp and efficient blades are essential for productivity.
Model :- SG-C14 14" TCT Circular Saw Grinder Model :- SG-C14 14" TCT Circular Saw Grinder
Technical Specifications
TCT Circular Saw Grinder – Model SG-C14
| Specification | Details |
|---|---|
| Table Size | 410 × 310 mm |
| Table Travel | 100 mm (4") — Adjustable |
| Cross Table | 240 mm (0.02 mm feed accuracy) |
| Grinding Wheel Size | 150 × 10 × 20 mm |
| Circular Blade Size (Min–Max) | Ø100 – Ø350 mm OD, 19 mm ID minimum |
| Grinding Wheel Tilting Angle | 0° to ±50° |
| Range of Cutting Angle | 1° to 30° |
| Grinding Motor Power | 0.5 HP, 2880 RPM, 220 / 440 V |
| Dimensions (W × D × H) | 500 × 550 × 1100 mm |
| Weight | 110 kg (Approx.) |
| Attachments (Optional) | Moulding, Grooving, Router Attachments |
Specialities of TCT Circular Saw Grinder
- Sharpens TCT circular saw easily after indexing
- Saves money, time & labour
- Adjustable machine lamp for spot lighting
- Special square model motor
- Suitable for sharpening any type of circular cutter
- Latest technology & good looking design
- Low cost, high performance
- No need of technical knowledge for grinding
- Dust guard bellows for slide protection

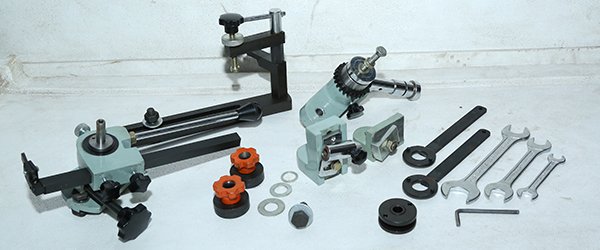

- Moulding Attachment, Groowing Cutter Attachment, Router Attachment (As per Customer Requirement)
Technical Specifications
TCT Circular Saw Grinder – Model SG-C14 LS
| Specification | Details |
|---|---|
| Table Size | 410 × 310 mm |
| Table Travel | 100 mm (4") — Rack & Pinion |
| Cross Table | 240 mm (0.02 mm feed accuracy) |
| Grinding Wheel Size | 150 × 10 × 20 mm |
| Circular Blade Size (Min–Max) | Ø100 – Ø350 mm OD / 400 mm OD, 19 mm ID minimum (as per requirement) |
| Grinding Wheel Tilting Angle | 0° to ±50° |
| Range of Cutting Angle | 1° to 30° |
| Grinding Motor Power | 0.5 HP, 2880 RPM, 220 / 440 V, Reverse–Forward |
| Dimensions (W × D × H) | 500 × 550 × 1100 mm |
| Weight | 110 kg (Approx.) |
| Attachments (Optional) | Moulding, Grooving Cutter, and Router Attachments (as per requirement) |
Specialities of TCT Circular Saw Grinder (SG-C14 LS)
- Linear bearing slide for smooth grinding
- Rack & pinion traveling for cross slide
- Sharpens TCT circular saw easily after indexing
- Saves money, time & labour
- Adjustable machine lamp for spot lighting
- Special square model motor
- Suitable for sharpening any type of circular cutter
- Latest technology & good looking design
- Low cost, high performance
- No need of technical knowledge for grinding
- Dust guard bellows for slide protection
- Moulding Attachment, Groowing Cutter Attachment, Router Attachment (As per Customer Requirement)
TCT Circular Saw Grinder Machine Specifications
Model
PBG-200
Type
TCT Planner Blade Grinder
Grinding Wheel Size
150 × 12 × 31.75 mm
Wheel Speed
2800 RPM
Max. Blade Length
200 mm
Table Travel
230 mm
Cross Travel
120 mm
Vertical Travel
150 mm
Motor Power
1 HP × 2800 RPM
Cooling System
With Pump & Tank
Power Consumption
3.0 kW
Machine Weight
150 kg (Approx.)
Machine Dimensions (L × W × H)
40 × 28 × 60 inch
Application
Grinding of TCT Planner Blades, Paper Cutting Blades
Material
High Speed Steel / TCT
Automation
Manual / Semi-Automatic
Brand
SENIOR
Country of Origin
Made in India
